Product Details:
Payment & Shipping Terms:
|
Voltage Input: | 110VAC | Frequancy: | 60Hz |
---|---|---|---|
Unit Weight: | 0.5kg | Arcing Distance: | 6mm |
Output Voltage: | 12KV Above | With Flame Sensor: | Yes |
Max Ignition Time: | 10s | Max Rekindling: | 10s |
High Light: | bbq grill ignitor,electric gas grill ignitor |

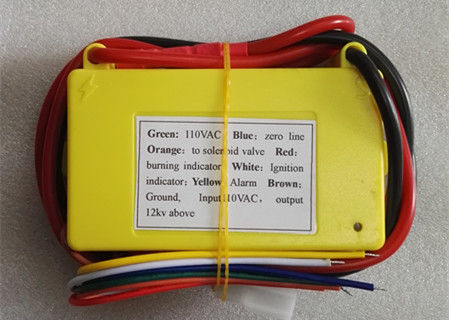

110v Gas Oven Burner Igntion Control Electric Pulse Igniter 12kv Output With Flame Sensor
Features:
Electric automatic ignition or PLC control ignition
Repeat igniting the gas automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can send out warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can shut off the gas supply immediately.
Technology of Single-chip and digital microcomputer, lightning proof to ensure safety use.
Usage:
the product are mainly used for the ignition of liquefied petroleum gas, natural gas and coal gas for the control of industrial Oven equipment.and for Gas Stove, Gas Oven, Gas Heater, Gas fireplace, Gas BBQ Grill, Patio Heaters, etc.
Specification:
Model | F110Y | With flame sensor | Yes |
Volt Input | 110VAC | Arcing distance | 6mm |
output voltage | 12KV above | line number | 7pcs |
Max rekindling time | 10s | line colors | Black,White,Yellow,Red,Orange,Blue,Green |
Max ignition time | 10s |
