Product Details:
Payment & Shipping Terms:
|
| Voltage Input: | AC220V-240V | Frequancy: | 50HZ |
|---|---|---|---|
| Ignition Medium: | Gas | Arcing Distance: | 6mm |
| Volt Output: | 16-18KV | S Output: | Sensor |
| N Output: | Igniter | Model: | HUO302 |
| High Light: | bbq grill ignitor,electric gas grill ignitor |
||

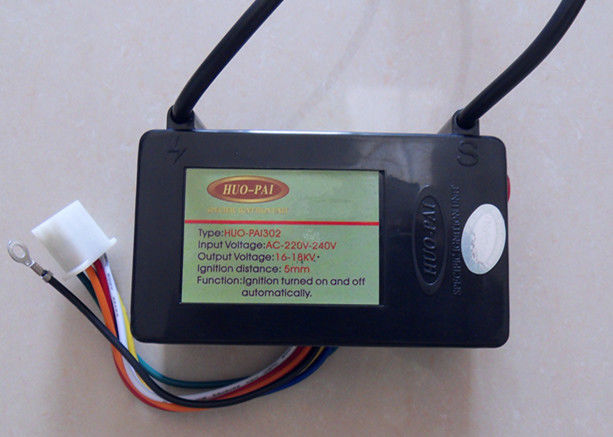

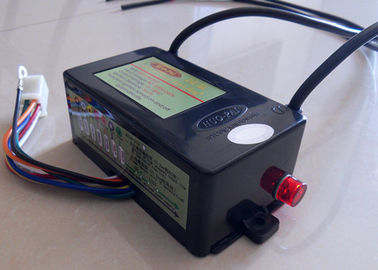

16-18KV Output With Solenoid Control Electric Pulse Gas Ignitor AC220V-240V Programmed
Features:
Electric automatic ignition or PLC control ignition
Repeat igniting the gas automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can send out warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can shut off the gas supply immediately.
Technology of Single-chip and digital microcomputer, lightning proof to ensure safety use.
Description:
1. Pluse igniter for gas oven burner
2. Pluse igniter cooperate with eletrode
3. Pluse igniter carries high-voltage ignition through eletrode
4. Pluse igniter is plastic
Specification:
| Model | HU302 | N output | igniter |
| weight | 0.5kg | S output | sensor |
| Volt Input | 150V-250VAC | Arcing distance | 6mm |
| output voltage | 16-18KV | wire number | 7pcs |

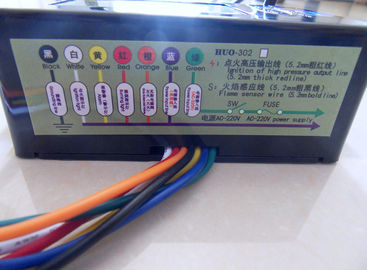

| Max rekindling | 10s | wire colors | Black,White,Yellow,Red,Orange,Blue,Green |
| Max ignition time | 10s | ||
| material | plastic | N/S output cable | silicone material |
| function | ignition turned on and off automatically | ||
