Industrial 400 Kw Danfoss Control Gas Combustion Heater For Steam Boiler System

China Industrial 400 Kw Danfoss Control Gas Combustion Heater For Steam Boiler System supplier

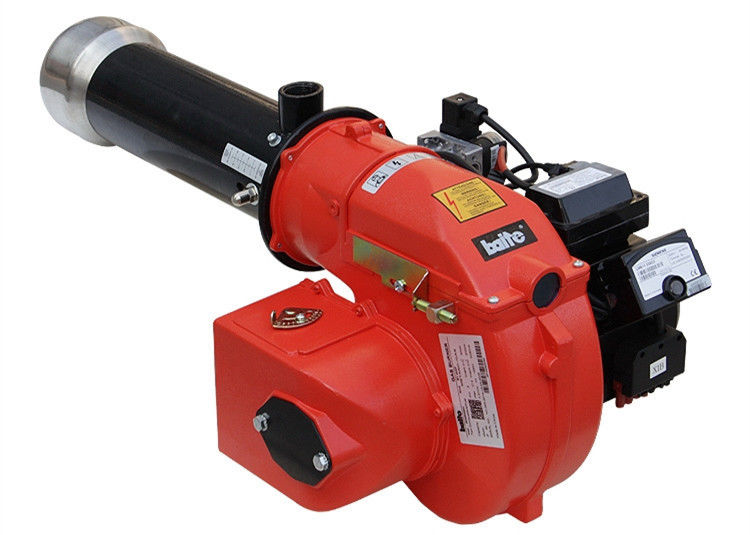

Large Image :  Industrial 400 Kw Danfoss Control Gas Combustion Heater For Steam Boiler System

Product Details:

Place of Origin: china
Brand Name: KINGRAY
Certification: CE
Model Number: BT35

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton and wooden case
Delivery Time: depends on purchase quanttiy
Payment Terms: T/T, Western Union, paypal
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Fire Output Stage: One / Two / Proportional Fuel: Propane / Natural Gas
Power Output: 400kw Gas Consumption: 23kgs LPG
Power Input: 220v Controller: DANFOSS
High Light:

lpg gas heaters

,

gas space heater

Industrial 400kw Danfoss Control Lpg Gas Combustion Heater For Steam Boiler System



Introduction:

1. Single-segment/two-stage progressive/proportional operation.

2. Air and gas are mixed in the combustion head.

3. Optimum combustion parameters can be obtained by adjusting combustion air and combustion head.

4. It is not necessary to remove the burner from the boiler to remove the atomizing device directly, and the maintenance is convenient.

5. Manually adjust the air flow in a single paragraph.

6. Dual segment servo motor for the first, second and maximum air flow adjustment;When the burner is suspended, the damper is closed to reduce heat loss in the furnace.

7. Progressive/proportional servo motors with cams can simultaneously regulate the supply of air and fuel.

8. A flange and an insulated seal ring are used to fix the boiler.

9. Combustion air inlet with flow regulating device.

10. Sliding flange pairs with various boiler flanges can be used to adjust the position of the burner into the boiler.

11. Single-phase motor drives the fan.

12. Ionization electrodes detect flames.

13. Standard configuration of electrical protection grade IP40.



Specification:

output fire one / two / proportional
Fuel propane / natural gas
Power output 400kw
gas consumption 23kgs LPG
NG consumption 30m³ NG
Heat output 350,000 kcal
BTU output 1,400,000 BTU
volt input 220VAC/50Hz
Controller DANFOSS
solenoid valve chinese brand
ignition controller chinese brand
weight 30kgs
Application boiler, food oven, curing plant oven, powder coating, etc.



Industrial 400 Kw Danfoss Control Gas Combustion Heater For Steam Boiler System

Industrial 400 Kw Danfoss Control Gas Combustion Heater For Steam Boiler System
