Product Details:
Payment & Shipping Terms:
|
| Fire Output Stage: | Single Stage / Proportional | Fuel: | LPG / NG |
|---|---|---|---|
| Power Output: | 302kw | Power Input: | 380VAC 50HZ |
| Motor Power: | 0.25kw | Connection Size: | 1" Or 3/4" |
| Gas Pressure Input: | 2800pa | Pressure Range Adapt: | 2000-5000pa |
| High Light: | lpg gas heaters,propane gas heaters |
||

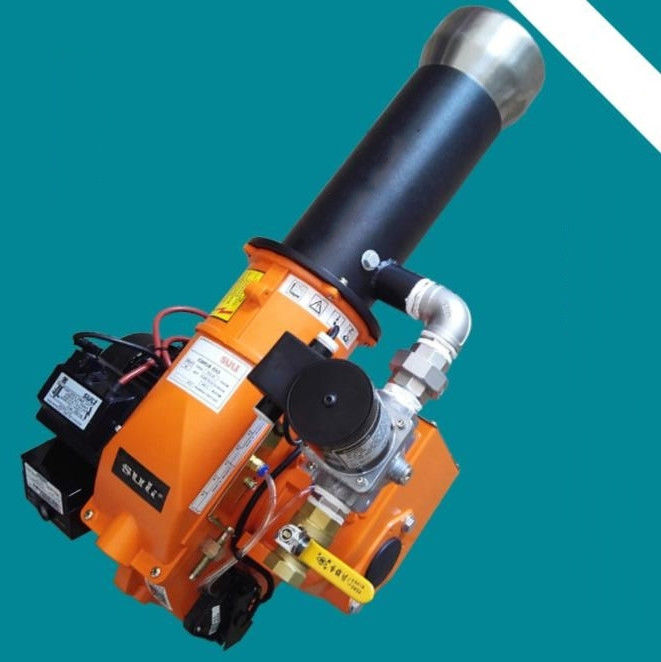

302kw High Velocity Automatic Combusting LPG Gas Burner For Industrial Furnace
Application:
Suitable for small and medium hat water,steaming hot furnace type,adopting the rotary flange,convenient to installation,maintenance,belongs to the backbone product. and for various boiler,furnace,food oven,air heater,spray booth, powder coating oven,etc
1. Gas-fired burner.
2. One-stage operation
3. Air-gas mixing at blast-pipe.
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Malntenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6. Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
7. One flange and one insulating seal for boiler fastening.
8. Combustion air intake with air flow adjustment device.
9. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10. Three-phase electric motor to run fan.
11. Flame presence check by ionisation electrode.
12. Electrical plant protection rating IP40
Specification:
| output fire | one stage / proportional |
| Fuel use | LPG / NG |
| Power output | 302kw |
| Heat output | 260,000 kcal |
| BTU output | 1,040,000 BTU |
| Temp adapt | -15-60C |
| grade | IP40 |
| volt input | 380VAC 50HZ |
| motor power | 0.25kw |
| LPG connection size | 3/4" |
| NG connection size | 1" |
| gas pressure input | 2800pa |
| pressure range adapt | 2000-5000pa |
| Application | boiler, food oven, chemical, curing plant oven, powder coating, incinerator, melting furnace, automobile baking paint room, drying stove, etc. |
