Product Details:
Payment & Shipping Terms:
|
| Material: | Cordierite | Ceramic Diameter: | 150mm |
|---|---|---|---|
| Equivalent Burner Size: | 155mm | Color: | Catalytic Black Painting |
| Application: | Cooker, Cooktop, Cooking Stove | Feature: | Energying Saving |
| Surface Burning Temperature: | 1100°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,porous ceramic plate |
||

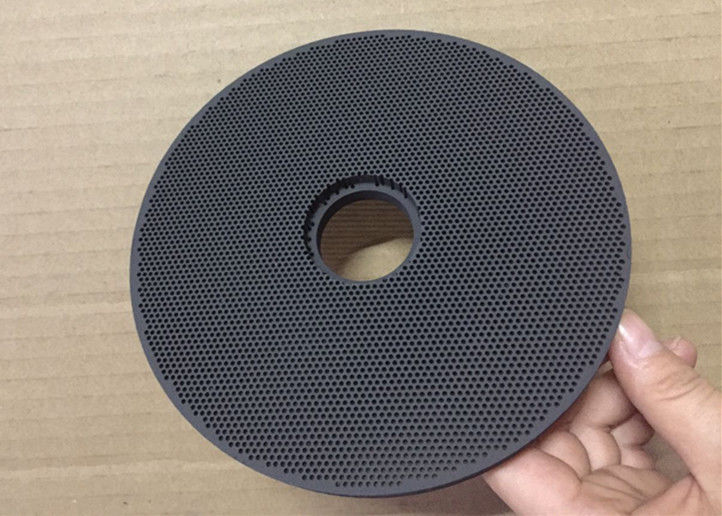

Catalytic Flameless Porous Gas Infrared Honeycomb Ceramic Plate With Internal Hole
Advantages:
1. Save 30-60% energy consumption.
2. Burn without flame, low noise.
3. Reduce the formulation of such harmful gas as CO, NOx, etc by a large margin (more than 70%)
4. Strong bearing of wind, using safely.
Physical Merits:
good thermal shock resistance (no cracks after 3 times thermal shock from 800C to cold water),
high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side),
good endurance for high temperature
high resistance for erosion
Specification:
| Material | cordierite |
| Plate Diameter | 150mm |
| Internal hole diameter | 35mm |
| burner diameter | 155mm |
| color | black painting |
| Shape | porous round |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 30~60% energy saved |
| Surface burning temperature | 1100°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Feature | catalytic more energy saving |
| Application | |

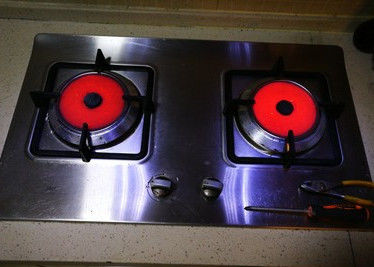

| cooker | cooktop |
| round burner | cooking stove |
