Product Details:
Payment & Shipping Terms:
|
| Material: | Cordierite | Diameter: | 160mm |
|---|---|---|---|
| Installation: | Built-in | Color: | Green |
| Application: | Cooker, Cooktop, Cooking Stove | Feature: | Energying Saving |
| Temperature Resistance: | 1280C | Surface Pattern: | Triangle |
| High Light: | ceramic burner plate,porous ceramic plate |
||

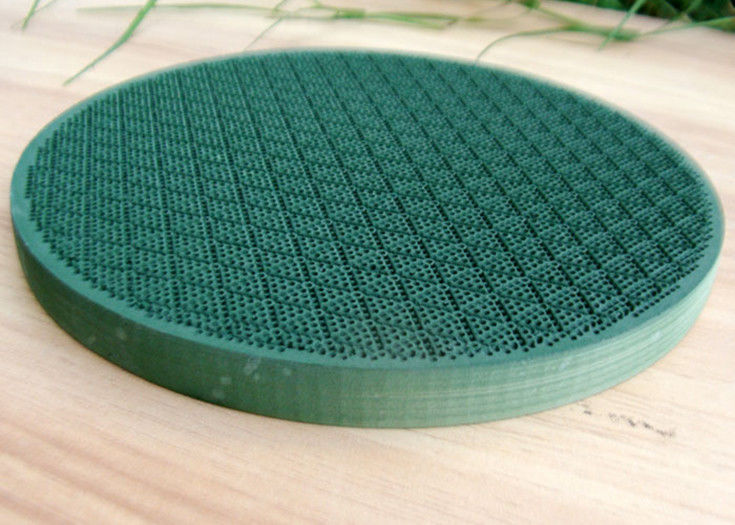

160mm Cordierite Triangle Pattern Gas Infrared Honeycomb Ceramic Plate For Commercial Cooker
If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style and this combustion style has more outstanding advantages comparing to the normal gas-fired stove combustion as below:
1. 30%-60% energy saving
2. Mixes oxygen completely with the gas, burning efficiently with no flame and little noise.
3. Operating safety without being influenced by wind when operating outdoor.
4. Decreasing the CO and NOx poisonous gas disposal and remove harmful.
Our company infrared combustion ceramic plate honeycomb ceramic can be applied to different gas. When customer place the order, customer
should provide the parameters such as the product size, CPSI, cell shape, the gas style, the pattern on the surface. If the you like the one
with coated catalyst, you should provide the catalyst color.
Specification:
| Material | cordierite |
| Plate Diameter | 160mm |
| color | green |
| Shape | round |
| surface pattern | triangle |
| Feature | 30~60% energy saved |
| Water absorption | 28% |
| temperature resistance | 1280C |
| aperture ratio | 61% |
| CO Release | ≤0.006R |
| NOx Release | ≤5ppm |
| Feature | catalytic more energy saving |
| Application | |
| cooker | cooktop |
| round burner | cooking stove |
