Product Details:
Payment & Shipping Terms:
|
| Burner Box: | Porcelain Enamel | Surface Plate: | SS304 |
|---|---|---|---|
| Burning Area: | 405x165mm | Dimension: | 530x190x80mm |
| LPG Consumption LPG (Kg/hr): | 0.40kg/hr | Heat Output: | 30000BTU |
| Net Weight: | 3kgs | Gas Type: | LPG / NG |
| Convertion Rate: | >90% | Feature: | With Net Screen |
| High Light: | infrared catalytic gas burner,gas bbq infrared burner |
||

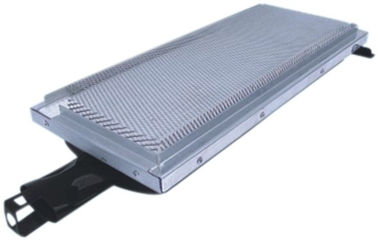

30000BTU Porcelain Enamelled Ceramics Infrared Gas Burner For Industrial Heat Exchange
Advantages:
1. Save more than 40% energy than electric burner
2. Eco-friendly: CO<80ppm;NOx<10ppm;CHx<50ppm,very little harmful gas release
3. fast baking by far gas infrared radiation.
BBQ application:
barbecue grill flameless roasting, the food can be heated evenly, no smoke, no pollution, good appearance and good taste, Catering use, seafood shop, hand braised chicken, rice crackers, egg rolls, biscuits, dried squid. Fish sauce, dried processed food.
Industrial Application:
1. Industrial Heat Exchange,heat treatment, degree of heat treatment 300C to 800C;
2. Metal surface treatment, moisture drying, baking and all kinds of industrial products for direct heating of 30-300degrees
3. latex gloves, PVS gloves,medical gloves baking, ceramic baking mold,
Agricultural processing:
Tobacco, tea, grain, aquatic products, vegetables, meat and other products of dehydration, baking
Specifications:
| Burning Area | 405x165mm | Net Weight | 3kgs |
| Total Dimension | 530x190x80mm | Gas Type | LPG / NG |
| Burner Box | enamelled | LPG pressure | 2.8-3kpa |
| Top Side Plate | stainless 304 | NG pressure | 2-2.2kpa |
| with nozzle | optional | nozzle thread | 6mm copper tube |
| with protect net | yes | Heat Output | 30000BTU |
| application | food oven, bbq grill, industrial coating curing, etc. | ||
