Product Details:
Payment & Shipping Terms:
|
| Burning Area: | 270x103mm | Burner Surface Size: | 302x131mm |
|---|---|---|---|
| Total Dimension: | 464*130*143mm | Consumption: | 0.211LPG (Kg/hr) |
| Gas Inlet: | Venturi Tube | Gas Use: | LPG / NG / RG |
| Nozze Hole: | 0.9mm | Heat Output: | 9200BTU |
| High Light: | ceramic infrared burner bbq,ceramic gas burner |
||

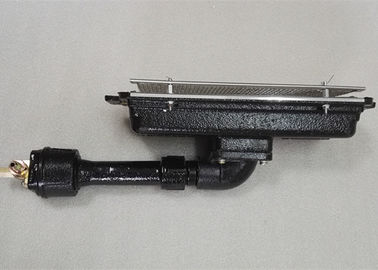

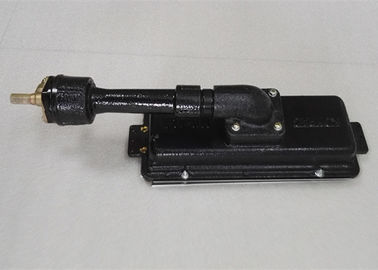

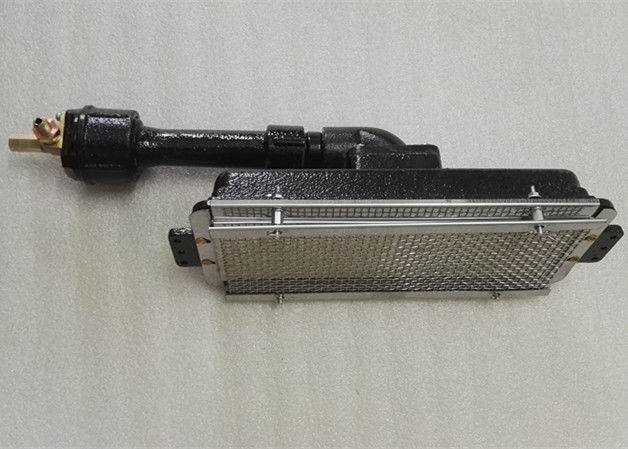

302x131mm Bottom Inlet Cast Iron Infrared Gas Burner With Venturi Pipe For Bbq
Function:
Infrared Burner takes honeycomb ceramic plates as burner, the gas can premix with air when burning and ensure burning completely. Thatcan greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in many fields, such as BBQ grill, bbq oven, gas infrared oven.
Food industry:
Outdoor oven, lamb string machines, hot cake stove, duck oven, baked sweet potato machine, the drying progress of egg roll, bread, biscuit, dried seasoned squid silk, fish jam(the food can be heated evenly, no smoke, no pollution, good appearance and good taste)
Specifications:
| burning area | 270x103mm | burner surface size | 302x131mm |
| Dimension | 464*130*143mm | Net Weight | 5.2kgs |
| gas entry way | venturi tube | Gas Type | LPG / NG / RG |
| Consumption | 0.211LPG (Kg/hr) | LPG pressure | 2.8-3kpa |
| Heat Output | 9200BTU | NG pressure | 2-2.2kpa |
| Nozze hole | 0.9mm | nozzle thread | 6mm copper tube |
| protect net | stainless steel woven net | burner box | cast iron |
| application | powder coating oven, bbq grill, heat treatment, etc. | ||
