| Burning Area: | 672*57mm | Burner Surface Size: | 685*83mm |
|---|---|---|---|
| Total Dimension: | 685*83*141mm | Consumption: | 0.286LPG (Kg/hr) |
| Pressure: | 2.8kpa LPG | Gas Use: | LPG / NG / RG |
| Nozze Hole: | 1.05mm | Heat Output: | 12500BTU |
| High Light: | ceramic infrared burner bbq,ceramic gas burner |
||

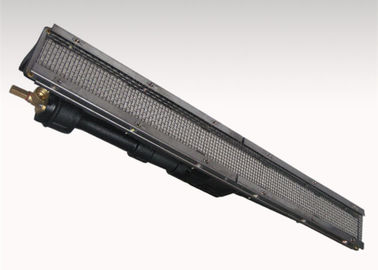

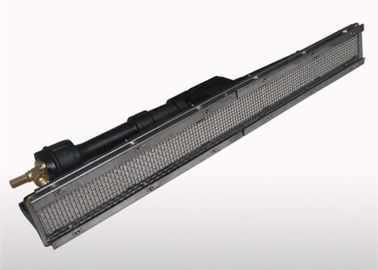

685*83mm Venturi Bottom Inlet Ceramic Cast Iron Infrared Gas Burner For Coating Oven
Powder coating line:
This Gas burner Infrared Drying Oven is good choice for industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control.It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking.
Food Industry:
Rice Biscuit assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
Painting Industry:
Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer
Specifications:
| burning area | 672*57mm | burner surface size | 685*83mm |
| Dimension | 685*83*141mm | Net Weight | 7.2kgs |
| gas entry way | venturi tube | Gas Type | LPG / NG / RG |
| Consumption | 0.286LPG (Kg/hr) | LPG pressure | 2.8-3kpa |
| Heat Output | 12500BTU | NG pressure | 2-2.2kpa |
| Nozze hole | 1.05mm | nozzle thread | 6mm copper tube |
| protect net | stainless steel woven net | burner box | cast iron |
| application | cooking, powder coating oven, food process, bbq grill, heat treatment, etc. | ||
