| Oil Comsumption: | 3-5L/H | Nozzle: | Brass Siphon 1*1.0mm |
|---|---|---|---|
| Output Power: | 35.5-59KW | Max. Output: | 20,000-50,000Kcal/H |
| Available Fuel: | All Kinds Of Waste Oil | Application: | Boiler,furnace,oven, Heating Treatment |
| High Light: | diesel oil heater,industrial diesel heater |
||

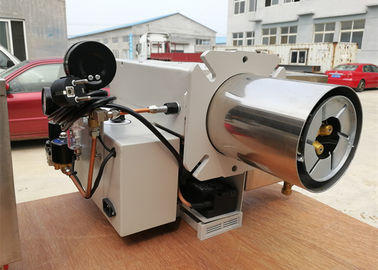

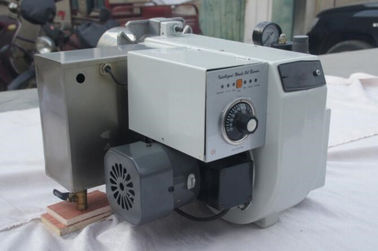

Good Quality 30-60kw Multi Fuel 220v / 110v Industrial Waste Oil Burner For Oven
Introduction:
Being able to run in corrosion and acidic places through static paint application for burner body and its panel.
Quick installation and Serviceability with special connection system.
Designing for Mechanic or Electronic modulation kit on all of modulating products according to customer request.
Service actions can be made without the need to disconnect the burner from the boiler to take mixing unit down during servicing.
Fully closed air damper during the stop of the system to prevent heat losses from the chimney.
Opportunity for safe connection of oil leak system and pressurestats thanks to Multiblock connection
Opportunity of regulating air ratio from turbulator in the combustion cap
Flame control with ionisation method. Controllability of ionisation current by microamperemeter.
Opportunity for socket connection for electrical connection and comand control.
TECHNICAL DATA:
| Model | KR-05 |
| Oil Consumption | 3-5 L/H |
| Power Output | 35.5-59 KW |
| Max Heat Output | 20,000-50,000Kcal/H |
| (80,000-200,000Btul/H) | |
| Air compressor | 1 unit outside ac is needed |
| 0.3-0.5cbm/min(5-9L/s) | |
| Nozzle | brass siphon 1x1.0mm |
| Tube Diameter | 114mm |
| Heating Pipe | 1.0KW |
| Motor Power | 180W |
| Power Supply | 220V 50HZ / 110V 60HZ |
| Package size | 58x53x42cm |
| Gross Weight | 30kgs |
| Condition | pure new |
| Certificate | CE |
| available fuels | waste oil caloric value >8000Kcal,no solidification,no volatility,no water. available to use. used engine oil,used crankcase oil used cooking oil,used transmission oil used hydraulic oil,used synthetic oil used mixed oil,used vegetable oil used diesel oil,used tyre pyrolysis oil waste machine shop cutting oil used grades #1,#3,#4 heating oils note:regular oils,such as diesel are also available,gasoline can't be used |
