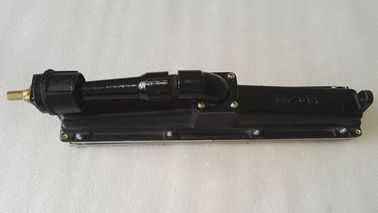

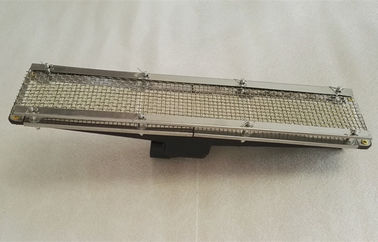

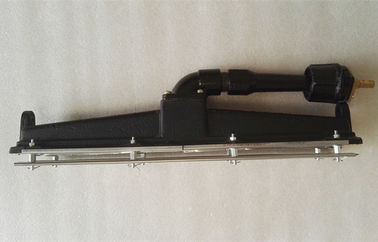

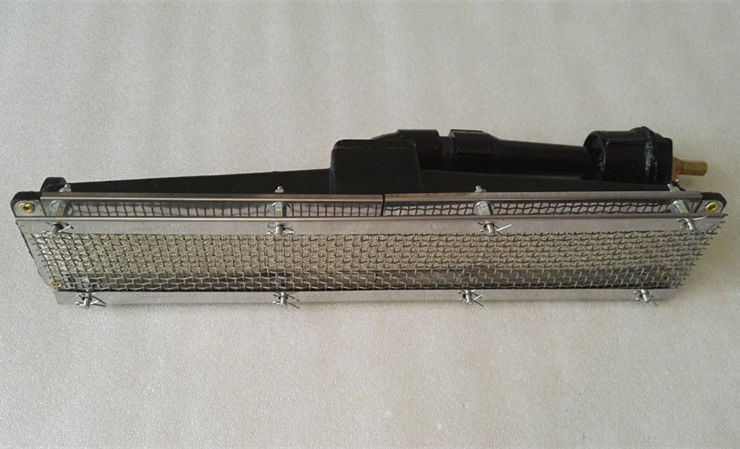

Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube

China Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube supplier
Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube supplier Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube supplier Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube supplier Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube supplier

Large Image :  Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube

Product Details:

Place of Origin: China Mainland
Brand Name: KINGRAY
Certification: CE
Model Number: MK61A

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: carton inside, pallet or wooden case outside
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Burner Box: Cast Iron Heat Output: 10000BTU
Dimensions: 423*84*102mm Consumption: 0.19 LPG (Kg/hr)
Gas Inlet: Venturi Tube Nozzle: LPG / NG
With Screen Net: Yes Weight: 4.8kgs
High Light:

ceramic infrared burner bbq

,

ceramic gas burner

423mm Length Cast Iron Catalytic Ceramics Gas Infrared Burner With Venturi Tube For Food Oven



Function:
Infrared Burner takes honeycomb ceramic plates as burner, the gas can premix with air when burning and ensure burning completely. Thatcan greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in many fields, such as BBQ grill, bbq oven, gas infrared oven.



Powder coating line:

This Gas burner Infrared Drying Oven is good choice for industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control.It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking.



Food Industry:

Rice Biscuit assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.



Specifications:

gas inlet venturi tube Net Weight 4.8kgs
Dimension 423*84*102mm Gas Type LPG / NG
Consumption 0.19 LPG (Kg/hr) LPG pressure 2.8-3kpa
Heat Output 10000BTU NG pressure 2-2.2kpa
nozzle LPG / NG nozzle thread 6mm copper tube
with protect net yes net material stainless steel
application curing oven, bbq grill, heat treatment, etc.



Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube

Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube

Cast Iron Industrial Infrared Burners , Gas BBQ Infrared Burner With Venturi Tube
