| Voltage Input: | 24VDC | Weight: | 0.4kg |
|---|---|---|---|
| Arcing Distance: | 0.6cm | Output: | 12KV Above |
| With Flame Sensor: | Yes | Max Ignition Time: | 10s (20s Or 5s) |
| Max Rekindling: | 10s (20s Or 5s) | Color: | Yellow Box |
| High Light: | bbq electronic ignition,electric gas grill ignitor |
||

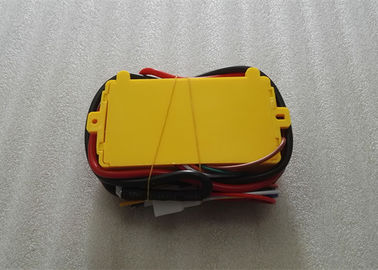

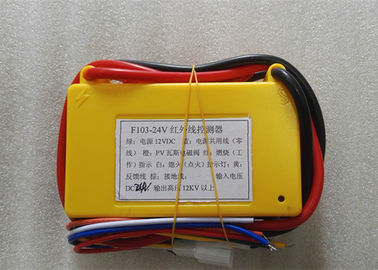

24VDC Silicone Cable Gas Oven Electric Pulse Ignition Igniter With 12kv Output
Usage:
the product are mainly used for the ignition of liquefied petroleum gas, natural gas and coal gas for the control of industrial Oven equipment.and for Gas Stove, Gas Oven, Gas Heater, Gas fireplace, Gas BBQ Grill, Patio Heaters, etc.
Features:
Electric automatic ignition or PLC control ignition
Repeat igniting the gas automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can send out warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can shut off the gas supply immediately.
Technology of Single-chip and digital microcomputer, lightning proof to ensure safety use.
Specification:
| Model | F103-24V | output cables | silicone |
| material | good quality plastic | With flame sensor | Yes |
| Volt Input | 24VDC | Arcing distance | 6mm |
| output voltage | 12KV above | wire number | 7pcs |
| Max rekindling time | 10s (20s or 5s) | wire colors | Black,White,Yellow,Red,Orange,Blue,Green |
| Max ignition time | 10s (20s or 5s) |
