| Input: | DC24V/50mA | Weight: | 0.45 |
|---|---|---|---|
| Arcing Distance: | 0.6cm | Output Volt: | 12KV Above |
| Output S: | Sensor | Output N: | Ignition |
| Max Ignition Time: | 10s | Max Rekindling: | 10s |
| High Light: | bbq electronic ignition,bbq grill ignitor |
||

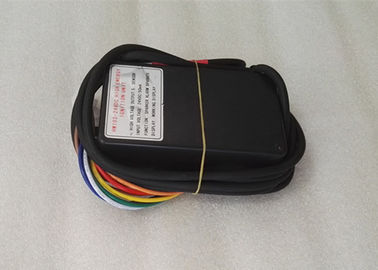

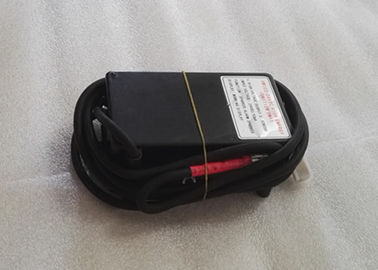

24VDC Black Color Industrial Oven Electric Pulse Ignition Ignitor With Output Sensor
Usage:
the product are mainly used for the ignition of liquefied petroleum gas, natural gas and coal gas for the control of industrial Oven equipment.and for Gas Stove, Gas Oven, Gas Heater, Gas fireplace, Gas BBQ Grill, Patio Heaters, etc.
Description:
1.Pluse igniter for gas oven burner
2.Pluse igniter cooperate with eletrode
3.Pluse igniter carries high-voltage ignition through eletrode
4.Pluse igniter is plastic
Specification:
| Model | HW103-24V | output N | ignition |
| weight | 0.45kg | output S | sensor |
| Volt Input | DC24V/50mA | Arcing distance | 6mm |
| output voltage | 12KV above | wire number | 7pcs |
| Max rekindling | 10s | wire colors | Black,White,Yellow,Red,Orange,Blue,Green |
| Max ignition time | 10s |
