Product Details:
Payment & Shipping Terms:
|
| Input: | DC12V | Weight: | 0.4kg |
|---|---|---|---|
| Arcing Distance: | 0.6cm | Output Voltage: | 12KV Above |
| Output S: | Sensor | Output N: | Igniter |
| Max Ignition Time: | 10s (20s / 5s / Ect. ) | Max Rekindling: | 10s (20s / 5s / Ect. ) |
| High Light: | bbq electronic ignition,bbq grill ignitor |
||

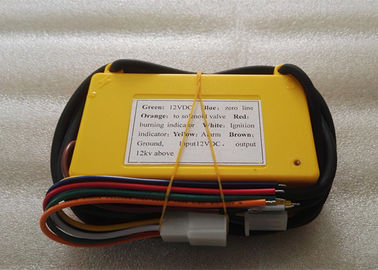

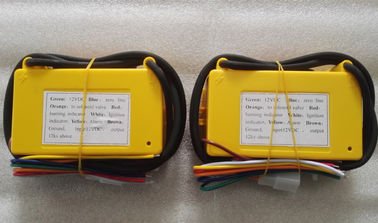

12VDC Industrial Burner Yellow Color Electric Pulse Ignition Igniter With Output Flame Sensor
Features:
Electric automatic ignition or PLC control ignition
Repeat igniting the gas automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can send out warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can shut off the gas supply immediately.
Technology of Single-chip and digital microcomputer, lightning proof to ensure safety use.
Advantage:
1.They are widely used for the igntion of gas oven, gas burner, gas heater, gas cooker, etc.
2.good quality plastic that can high temperature resistant
3.easy operational igniter, 12Vdc, power on spark, power off stop igniting.
4.two silicone cable length, length can be customized.
5.electrode are 3pins ceramics igniter with flame sensor
Specification:
| Model | HW103-12V | output N | igniter |
| weight | 0.4kg | output S | sensor |
| Volt Input | DC12V | Arcing distance | 6mm |
| output voltage | 12KV above | wire number | 7pcs |

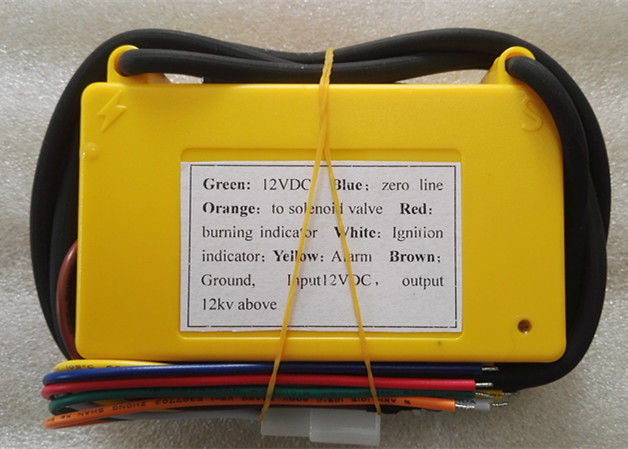

| Max rekindling | 10s (20s / 5s / ect. ) | wire colors | Black,White,Yellow,Red,Orange,Blue,Green |
| Max ignition time |
10s (20s / 5s / ect. ) |
