Product Details:
Payment & Shipping Terms:
|
| Input: | DC12V | Net Weight: | 400g |
|---|---|---|---|
| Arcing Distance: | 0.6cm | Output Voltage: | 12KV Above |
| S Output: | Sensor | N Output: | Igniter |
| Max Igniting Time: | 10s (20s / 5s / Ect. ) | Max Rekindling: | 10s (20s / 5s / Ect. ) |
| High Light: | bbq electronic ignition,electric gas grill ignitor |
||

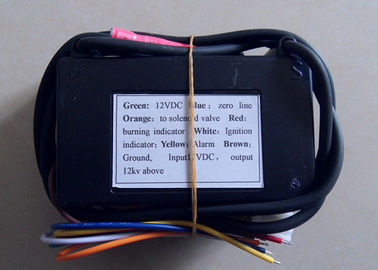

12VDC Commercial Gas Burner Ignition Electric Pulse Igniter With Output Heat Sensor
Features:
Electric automatic ignition or PLC control ignition
Repeat igniting the gas automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can send out warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can shut off the gas supply immediately.
Technology of Single-chip and digital microcomputer, lightning proof to ensure safety use.
Specification:
| Model | F103-12VB | N output | igniter |
| weight | 400g | S output | sensor |
| Volt Input | DC12V | Arcing distance | 6mm |

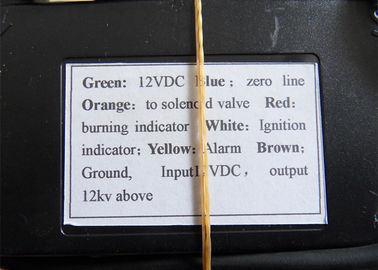

| output voltage | 12KV above | wire number | 7pcs |
| Max rekindling | 10s (20s / 5s / ect. ) | wire colors | Black,White,Yellow,Red,Orange,Blue,Green |
| Max ignition time | 10s (20s / 5s / ect. ) | ||
| material | plastic | output cables | silicone or rubber material |
