Product Details:
Payment & Shipping Terms:
|
| Valve Material: | Brass And Aluminum | Igniter Type: | Piezo / 1.5v Battery / 220v Pulse |
|---|---|---|---|
| Pilot Fire Port: | Yes | Thermocouple Port: | Yes |
| Flow Medium: | Gas | Weight: | 0.824kg |
| Thermocouple Length: | 1-2m | Igniter Cable Length: | 1-2m |
| High Light: | automatic gas shut off valve,gas stove control valve |
||

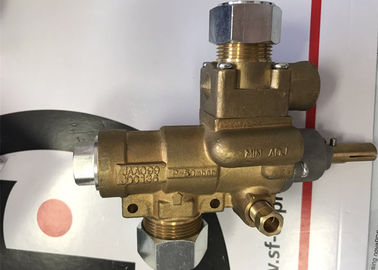

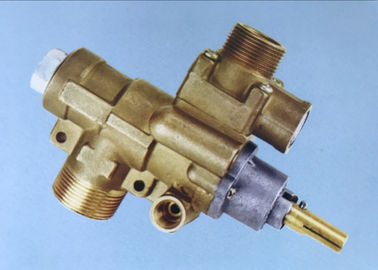

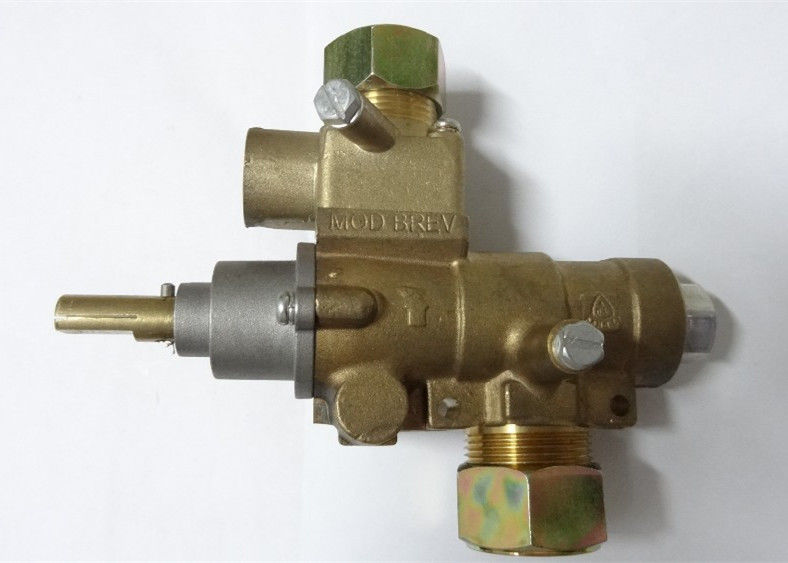

Flame Failure Protection Brass Gas Safety Relief Valve With Thermocouple Thermal Function
Certification: CE / CSA
Applicable gas: LPG / NG / butane
Principle: To close the gas from suddenly fire extinguishment. It adopts solenoid valve as a controlling component. When the gas extinguish suddenly in working state, this protector will shut off the gas quickly to prevent some accidents from gas leakage, such as poisoning, fire and gas explosion etc.
Specification:
| inlet port size | M28x1.5 |
| outlet port size | M24x1.5 |
| valve material | brass with alumunim |
| ignitor type | piezoelectric / 1.5v battery / 110V&220VAC pulse |
| igniter cable length | 1-2m |
| with pilot fire port | yes |
| with thermocouple | yes |
| thermocouple length | 1-2m |
| Flow medium | LPG / NG / CG / etc. |
| weight | 824g |
| knob included | optional |
| knob weight | 96g |
| knob material | solid 304 stainless steel |
| Feature | can automatically shut off gas when flame out |
Other terms
1) About Samples
We provide samples for your test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery and we can also use your courier account if you have so freight can be collect. Tracking number will be sent once we have.
2) About Packing
Inner packing: white box or Kraft paper box, Outer packing: cartons or pallets
3) Terms of payment:
We accept T/T, Western union, Paypal
4)Terms of Shipment:
About 15-25days after receiving deposit.
5) Ports of shipment:
guangzhou,shenzhen,shanghai,ningbo,qingdao,etc.
6) Gurantee:
One year after delivery.
7) Inspection:
100% testing before out of factory
