Stage: | Two Stage / Ratio Regulation | Fuel: | LPG / NG |
---|---|---|---|
Power Output: | 235kw | Heat Output: | 200,000kcal |
BTU Output: | 800,000 BTU | Voltage Input: | 220VAC |
Solenoid Valve: | Honeywell / Chinese Brand | Controller: | Honeywell |
High Light: | lpg gas heaters,propane gas heaters |

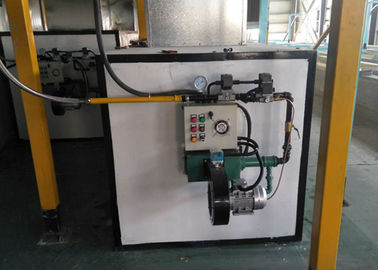

235kw Automatic Control Industrial 2 Stage 220v Gas Fire Heater For Fast Heating Oven
Introduction:
Carefully designed air mixed form, and fully ensure the safety of flame stability and full Combustion and combustion air quantity output can be set within the scope of regulation, by adjusting the output control and good burning effect; Burner and stabilize flame device combination device, no need to disassemble the burner, can easily remove the internal component to repair and maintainence.
Features:
1) Double stages operation (big / small flame)
2) Can be adapted to any type of burning chamber
3) Mechanical pressure atomization.
4) Changing the volume of air and the combustion head providing the best burning effect.
5) Can directly remove the atomization device without disassembling the burner from the oven or boiler ensuring covenient mantenance.
6) A flange and insulation sealing washer connect to the boiler, which is equipped with two hose, a linear filter and nozzle.
7) We can offer a longer combustion head if required by yours.
8) A hydraulic regulator is used to adjust air flux in the first and second sections, and is collocated to avoid heating loss at the time of stopping.
9) Electrical protection grade of standard collocation is IP40, with this grade able to be enhanced if necessary.
Specification:
stage | two stage / ratio regulation |
Gas | LPG / NG |
Power output | 235kw |
Heat output | 200,000kcal |
BTU output | 800,000 BTU |
volt input | 220VAC |
Controller | Honeywell |
solenoid valve | Honeywell / Chinese brand |
ignition controller | chinese brand |
electric panel | yes |
full automatic control | yes |
weight | 25kgs |
