Fire Output Stage: | Two Stage | Fuel: | Heavy Oil, Asphalt Oil, Methyl Alcohol, Diesel Oil, Etc. |
---|---|---|---|
Power Output: | 5500kw | Power Input: | 380VAC/50HZ |
Motor Power: | 19.5kw | Oil Consumption: | 400-480kg/h |
High Light: | diesel oil heater,industrial diesel heater |

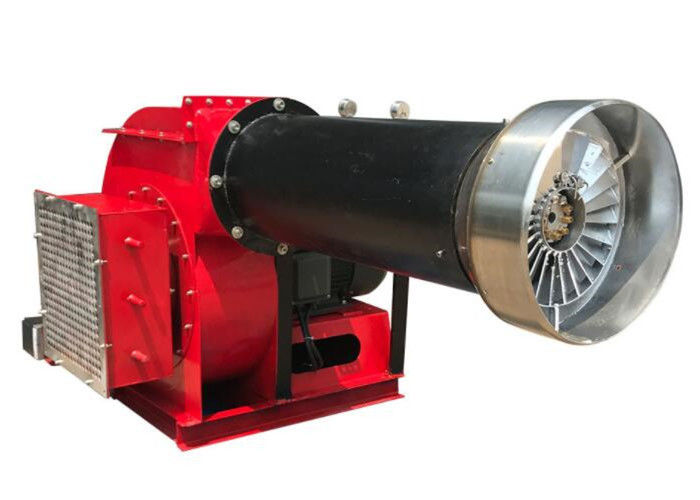

5500kw Huge Heat Output Automatic Combusting Multi Fuel Heater For Foundry Equipment
Features:
1.By adopting advanced low pressure media atomized spray gun, the burner features energy conservation,environmental friendly and powerful adaptability to various quality oil.
2.Both of the oil pump and the fan adopt vari-frequency control technology so as to decrease the complexity of the traditional mechanical ratio modulation system and enhance the system reliability.
3.the diesel oil can burn directly and efficiently.
4.By adopting tailored fan,the shape of flame can be controlled very easily and decreases abiation towards the flame chamber so that it can gets longer lifecycle.
Specification:
output fire | two stage |
Fuel use | heavy oil, asphalt oil, methyl alcohol, diesel oil, etc. |
Power output | 5500kw |
Heat output | 4,800,000kcal |
BTU output | 19,200,000 BTU |
oil consumption | 400-480kg/h |
grade | IP40 |
volt input | 380VAC 50HZ |
motor power | 19.5kw |
flange mounting | Sliding adjustable flange. |
air inlet volume control | servo motor |

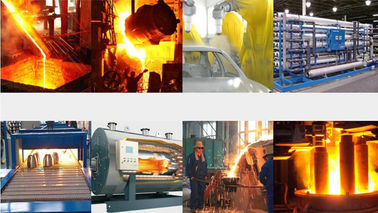

Application | boiler, food oven, chemical, curing plant oven, powder coating, incinerator, casting equipment, melting furnace, automobile baking paint room, drying stove, etc. |
