Product Details:
Payment & Shipping Terms:
|
Fire Output: | One Stage | Fuel: | Diesel Oil |
---|---|---|---|
Power Output: | 89-172kw | Power Input: | 220/50 (V/Hz) |
Controller: | DANFOSS / HONEYWELL | Weight: | 15kgs |
High Light: | diesel oil heater,industrial diesel heater |

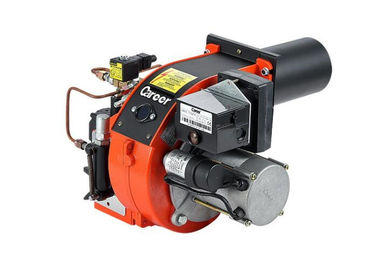

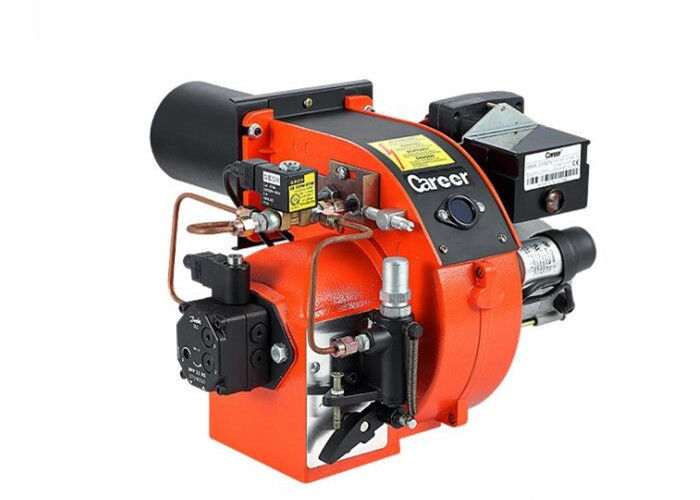

150,000kcal Single Fire Output Automatic Combustion Light Diesel Oil Heater For Spraying Drying
Application:
Suitable for small and medium hat water,steaming hot furnace type,adopting the rotary flange,convenient to installation,maintenance,belongs to the backbone product. and for various boiler,furnace,food oven,air heater,spray booth, powder coating oven,etc
Features:
1. By adopting advanced low pressure media atomized spray gun, the burner features energy conservation,environmental friendly and powerful adaptability to various quality oil.
2. Both of the oil pump and the fan adopt vari-frequency control technology so as to decrease the complexity of the traditional mechanical ratio modulation system and enhance the system reliability.
3. the diesel oil can burn directly and efficiently.
4. By adopting tailored fan,the shape of flame can be controlled very easily and decreases abiation towards the flame chamber so that it can gets longer lifecycle.
Specification:
output fire | one stage |
Controller | DANFOSS / HONEYWELL |
Power output | 89-172kw |
Heat output | 76500-147900kcal/hr |
Fuel use | light diesel oil |
oil consumption | 7.5-14.5kg/hr |
packing size | 480*440*345mm |
weight | 15kg |
volt input | 220VAC/50HZ |
oil pump | Danfoss |
motor power | 0.18kw |
Application | boiler, food oven, chemical, curing plant oven, powder coating, incinerator, casting equipment, melting furnace, automobile baking paint room, drying stove, etc. |
