Product Details:
Payment & Shipping Terms:
|
Fire Output: | One Stage | Fuel: | Diesel Oil |
---|---|---|---|
Power Output: | 59-119kw | Power Input: | 220/50 (V/Hz) |
Controller: | DANFOSS / SIEMENS | Motor Power: | 120w |
Weight: | 15kgs | Oil Pump: | Danfoss |
Highlight: | diesel powered heater,industrial diesel heater |

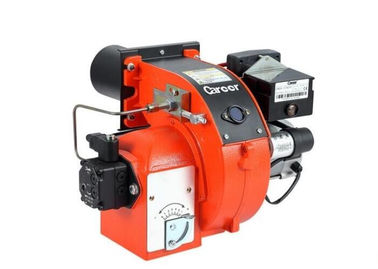

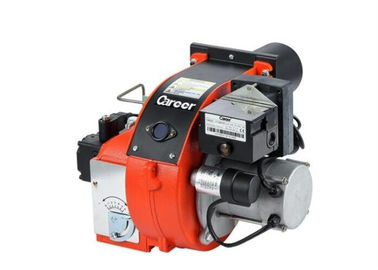

Custom Made 119kw Single Stage Light Diesel Fuel Burner For Industrial Drying
Introduction:
Being able to run in corrosion and acidic places through static paint application for burner body and its panel.
Quick installation and Serviceability with special connection system.
Designing for Mechanic or Electronic modulation kit on all of modulating products according to customer request.
Service actions can be made without the need to disconnect the burner from the boiler to take mixing unit down during servicing.
Fully closed air damper during the stop of the system to prevent heat losses from the chimney.
Opportunity for safe connection of oil leak system and pressurestats thanks to Multiblock connection
Opportunity of regulating air ratio from turbulator in the combustion cap
Flame control with ionisation method. Controllability of ionisation current by microamperemeter.
Opportunity for socket connection for electrical connection and comand control.
Advantages :
1) Technical characteristics.
2) Operational reliability.
3) Every part is easy to dismounting.
4) High efficiency for maintenance,cleaing and checking.
5) Main components are international famous brands
Specification:
stage | single |
Controller | DANFOSS / SIEMENS |
Power output | 59-119kw |
Heat output | 51000-102000kcal/hr |
Fuel use | diesel |
oil consumption | 5.0-10kg/hr |
packing size | 480*440*345mm |
weight | 15kg |
volt input | 220VAC/50HZ |
oil pump | Danfoss |
motor power | 120w |
Application | boiler, food oven, chemical, curing plant oven, powder coating, incinerator, casting equipment, melting furnace, automobile baking paint room, drying stove, etc. |
