Product Details:
Payment & Shipping Terms:
|
| Burner Shell: | Enamel Finishing | Top Side Plate: | 304 Stainless Steel |
|---|---|---|---|
| Burning Area: | 780*163mm | Total Dimension: | 900*190*80mm |
| Consumption Of LPG: | 0.90kg/h | Heat Output: | 15000KCAL / 60000BTU |
| Unit Weight: | 5kgs | Gas Type: | LPG / NG |
| Convertion Rate: | >90% | Nozzle Material: | Brass |
| High Light: | gas bbq infrared burner,natural gas grill infrared burner |
||

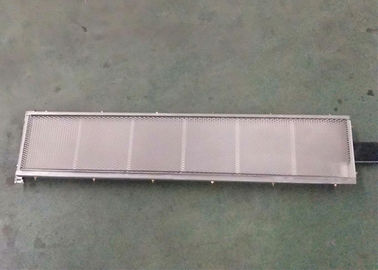

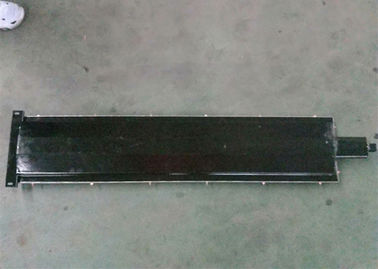

Customize Super Long Enamelled Ceramic Infrared Gas Burner With Brass Nozzle For Oven
Food Use:
Catering use, seafood shop, hand braised chicken, rice crackers, egg rolls, biscuits, dried squid. Fish sauce, dried processed food. Agricultural processing;Tobacco, tea, grain, aquatic products, vegetables, meat and other products of dehydration, baking. Outdoor oven, lamb string machines, hot cake stove, duck oven, baked sweet potato machine, the drying progress of egg roll, bread, biscuit, dried seasoned squid silk, fish jam(the food can be heated evenly, no smoke, no pollution, good appearance and good taste).
Industrial Use:
1. Continuous forging, heat return, heat treatment, degree of heat treatment 300_800;
2. Metal surface treatment, moisture drying, baking and all kinds of production equipment for direct heating of 30---300degrees
3. Carpet latex, PVS gloves, ceramic baking mold, GREEN 30---3000 degree hezt of dry glazing
Material:
1. Shell: cooling plate with enamel coating
2. Radiant part: cordierite ceramics honeycomb plates
3. Up cover: stamped stainless steel
4, nozzle: brass
5, net: stainless steel
Specifications:
| Burning Area | 780*163mm | Unit Weight | 5kgs |
| Outer size | 900*190*80mm | Gas Use | LPG / NG |
| Consumption | 0.90kg/h LPG | LPG pressure | 2.8-3kpa |
| Kcal Output | 150000kcal | NG pressure | 2-2.2kpa |
| nozzle | brass | BTU output | 60000BTU |
| with screen net | yes | screen material | stainless steel |
| application | curing plant,food oven, bbq grill, heat treatment, etc. | ||
