20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod

Good quality BBQ Grill Rotisserie Motor for sales
Good quality BBQ Grill Rotisserie Motor for sales
Very professional company with good service and hard working after sale teams. I think it will be my best experience in exporting products from china.

—— Becky

As an old customer, I trust your products and companies very much. During the cooperation, Mr. Luo also provided me with a lot of professional help.

—— Daniel

Kingray brings great help to our work , your bbq burner production is very professional and precise. Thanks to your professionalism and passion.

—— David

I'm Online Chat Now

20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod

China 20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod supplier
20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod supplier 20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod supplier 20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod supplier

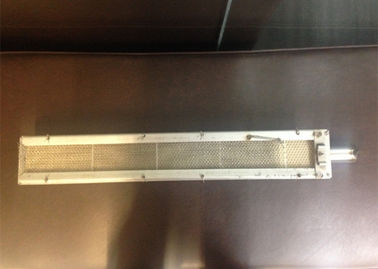

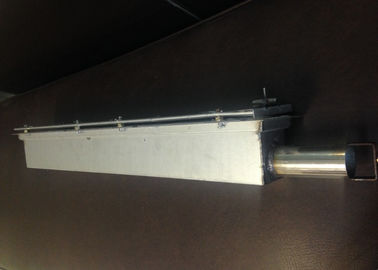

Large Image :  20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod

Product Details:

Place of Origin: China
Brand Name: KINGRAY
Certification: CE
Model Number: CIB71

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton and Wooden Case
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Burner Box: Galvanized Inlet Tube: 304stainless Steel
Dimension: 710*94*90mm Burning Area: 590*64mm
Heat Output: 20000BTU Net Weight: 2.7kgs

Customized Galvanized Stainless Steel Infrared Gas Burner With Ignition Rod For Oven



Function:
Infrared Burner use honeycomb ceramic plates, the gas can premix with air naturallly when burning and ensure burning completely. Thatcan greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in BBQ grill, oven, bbq machine, etc.



Advantages:
Saving 30%~50% energy than common gas flame burner
Long useful life:≥11000hr
Eco-friendly: CO≤80ppm; NOx≤10ppm; CHx≤50ppm
Naturally aspirated burner, no need of accessories like air blower



Specifications:

Burning Area 590*64mm Net Weight 2.7kgs
Dimension 710*94*90mm Gas Type LPG / NG
Consumption 0.25kg/hr LPG pressure 2.8-3kpa
Heat Output 20000BTU NG pressure 2-2.2kpa
with nozzle no Inlet Tube 304stainless steel
with protect net yes net material stainless steel woven net
application

bbq grill,oven,kebab shawarma machine,etc





















20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod

20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod

20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod

20000 BTU Heat Output Infrared Gas Burner 304 Stainless Steel Inlet Tube With Ignition Rod
