| Burner Box Material: | Aluminum Plate | Top Side Plate Material: | 430 Stainless Steel |
|---|---|---|---|
| Burning Area: | 383*54mm | Dimension: | 450*88*60mm |
| Consumption LPG (Kg/hr): | 0.20kg/hr | Heat Output: | 10000BTU |
| Net Weight: | 0.9kg | Installation: | Built-In |
| Gas Type: | LPG / NG | Convertion Rate: | >90% |
| High Light: | gas bbq infrared burner,natural gas grill infrared burner |
||

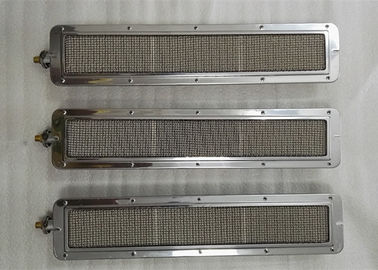

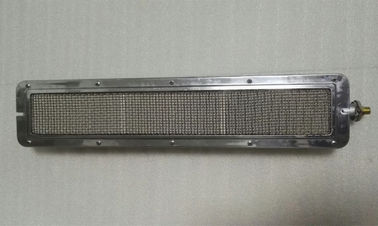

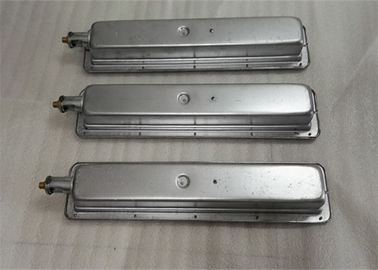

Aluminum Plate And Stainless Steel Ceramics Infrared Gas Burner With Nozzle For Bbq Grill
Introduction:
Infrared Burner takes honeycomb ceramic plates as burner, the gas can premix with air when burning and ensure burning completely. Thatcan greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in many fields, such as BBQ grill, bbq oven, gas infrared oven.
Advantages:
1. Save more than 40% energy than electric burner
2. Eco-friendly: CO<80ppm;NOx<10ppm;CHx<50ppm,very little harmful gas release
3. fast baking by far gas infrared radiation.
Specifications:
| Burning Area | 383*54mm | Net Weight | 0.9kg |
| Dimension | 450*88*60mm | Gas Type | LPG / NG |
| Consumption | 0.20kg/hr | LPG pressure | 2.8-3kpa |
| Heat Output | 10000BTU | NG pressure | 2-2.2kpa |
| with nozzle | yes | nozzle thread | 6mm copper tube |
| with protect net | yes | net material | stainless steel |
