|Burner Box:||Galvanized||Surface Side Plate:||304 Stainless Steel|
|Consumption LPG (Kg/hr):||0.5kg/h Lpg||Heat Output:||45000BTU|
|Gas Type:||LPG / NG||Convertion Rate:||>90%|
gas bbq infrared burner,
natural gas grill infrared burner

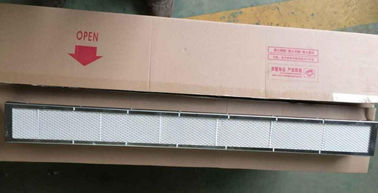

Customization 900mm Galvanized Catalytic Ceramic Infrared Gas Burner For Duck Roast Oven
Infrared Burner takes honeycomb ceramic plates as burner, the gas can premix with air when burning and ensure burning completely. That can greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in many fields, such as BBQ grill, bbq oven, gas infrared oven.
1. Save more than 40% energy than electric burner
2. Eco-friendly: CO<80ppm;NOx<10ppm;CHx<50ppm,very little harmful gas release
3. fast baking by far gas infrared radiation.
barbecue grill flameless roasting, the food can be heated evenly, no smoke, no pollution, good appearance and good taste, Catering use, seafood shop, hand braised chicken, rice crackers, egg rolls, biscuits, dried squid. Fish sauce, dried processed food. Outdoor oven, lamb string machines, hot cake stove, duck oven, baked sweet potato machine, the drying progress of egg roll, bread, biscuit, dried seasoned squid silk, fish jam.
|Burning Area||880*76mm||Net Weight||2.4kgs|
|Dimension||900*80*63mm||Gas Type||LPG / NG|
|Consumption||0.5kg/h lpg||LPG pressure||2.8-3.0kpa|
|Heat Output||45000BTU||NG pressure||2.0-2.2kps|
|Burner Box||galvanized||with nozzle||no|
