Product Details:
Payment & Shipping Terms:
|
| Burner Box: | Enamel Plating / Stainless Steel | Surface Plate: | SS304 |
|---|---|---|---|
| Burning Area: | 302*161mm | Dimension: | 429*190*74mm |
| Consumption LPG (Kg/hr): | 0.450kg/hr Lpg | Heat Output: | 23000BTU |
| Net Weight: | 2.5kgs | Gas Type: | LPG / NG |
| Convertion Rate: | >90% | With Net Screen: | Yes |
| High Light: | infrared catalytic gas burner,natural gas grill infrared burner |
||

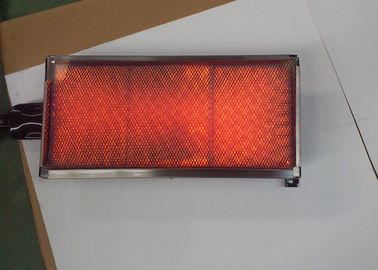

23000BTU Catalytic Ceramic Infrared Gas Burner With Screen Net For Oven
Advantages:
1. Save above 40% energy than electric
2. High efficient: preheating up time can be reduced to under 30min
3. Eco-friendly :CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. Naturally aspirated burner,no need of air blower,fire chamber
Food application:
Catering use, seafood shop, hand braised chicken, rice crackers, egg rolls, biscuits, dried squid. Fish sauce, dried processed food. Outdoor oven, lamb string machines, hot cake stove, duck oven, baked sweet potato machine, the drying progress of egg roll, bread, biscuit, dried seasoned squid silk, fish jam(the food can be heated evenly, no smoke, no pollution, good appearance and good taste)
Industrial Application:
1. Continuous forging, heat return, heat treatment, degree of heat treatment 300_800;
2. Metal surface treatment, moisture drying, baking and all kinds of production equipment for direct heating of 30---300degrees
3. Carpet latex, PVS gloves, ceramic baking mold, GREEN 30---3000 degree hezt of dry glazing
Specifications:
| Burning Area | 302*161mm | Net Weight | 2.5kgs |
| Dimension | 429*190*74mm | Gas Type | LPG / NG |
| Consumption | 0.450kg/hr lpg | LPG pressure | 2.8-3kpa |
| Heat Output | 23000BTU | NG pressure | 2-2.2kpa |
| with nozzle | optional | nozzle thread | 6mm copper tube |
| with protect net | yes | net material | stainless steel |
| application | curing oven, bbq grill, heat treatment, etc. | ||
