Product Details:
Payment & Shipping Terms:
|
| Material: | Cordierite Ceramics | Size: | 162*60mm |
|---|---|---|---|
| Hole Size: | 1-1.56mm | Color: | White |
| Application: | Gas Bbq Grill | Advantage: | 30-60% Energy Saving |
| Surface Pattern: | Diamond | Temperature Resistance: | 1280C |
| Highlight: | ceramic burner plate,porous ceramic plate |
||

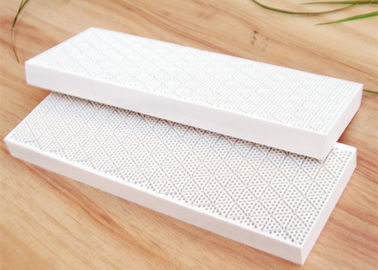

162*60mm Diamond Shape Cordierite Gas Infrared Honeycomb Ceramic Plate For Grill
Introduction:
Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission. This product has good thermal shock resistance (no cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high erosion resistance.
Specification:
| Material | cordierite ceramics |
| dimension | 162*60mm |
| color | white |
| Shape | rectangle |
| surface pattern | diamond |
| Feature | 30~60% energy saved |
| Water absorption | 28% |
| temperature resistance | 1280C |
| aperture ratio | 61% |
| CO Release | ≤0.006R |
| NOx Release | ≤5ppm |
| Feature | catalytic more energy saving |
| Application | |
| cooker | cooktop |
| round burner | cooking stove |
