| Material: | Cordierite Ceramics | Size: | 146*75mm |
|---|---|---|---|
| Hole Size: | 1-1.56mm | Color: | White |
| Application: | Heat Furnace | Advantage: | 30-60% Energy Saving |
| Surface Pattern: | Eight | Temperature Resistance: | 1280C |
| High Light: | ceramic burner plate,porous ceramic plate |
||

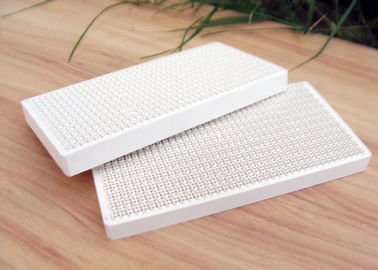

146*75mm Eight Pattern Cordierite Gas Infrared Honeycomb Ceramic Tile For Heating Furnace
Infrared honeycomb ceramic plate used in combustion oven by using modern advanced technology and selecting high-purity and high-quality cordierite. it has the advantages of high heat efficiency and low energy consuming, low pollution, very economic, easy installing, high ventilative rate and strong heat radiation, Compared with the electrical heating and common gas-fired combustion equipment.
Benefits:
Outstanding Strength
Uniform and evenly radiant heating
Excellent thermal shock resistance
Save up to 30~60% energy cost
flameless burning, high efficiency, low noise
Reduce the harmful gas such as CO, NOx, etc more than 90%
Specification:
| Material | cordierite ceramics |
| dimension | 146*75mm / customized |
| color | white |
| Shape | rectangle |
| surface pattern | eight |
| Feature | 30~60% energy saved |
| Water absorption | 28% |
| temperature resistance | 1280C |
| aperture ratio | 61% |
| CO Release | ≤0.006R |
| NOx Release | ≤5ppm |
| thermal efficiency | ＞68% |
| thermal shock resistance | no breakage in 10times |
| compression strength | ＞10Mpa |
| Application | gas heater, heating furnace |
