Product Details:
Payment & Shipping Terms:
|
| Burner Box: | Aluminum Plate | Top Side Plate: | 430 Stainless Steel |
|---|---|---|---|
| Burning Area: | 180x130mm | Dimension: | 220*167mm |
| Gas Consumption: | LGP=0.16kg/h NG=0.22m3 | Heat Output: | 8000BTU |
| Net Weight: | 0.80kg | Gas Type: | LPG / NG |
| High Light: | gas bbq infrared burner,natural gas grill infrared burner |
||

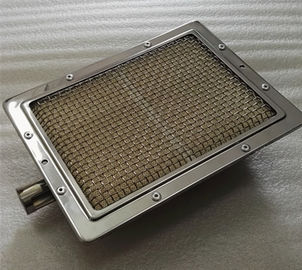

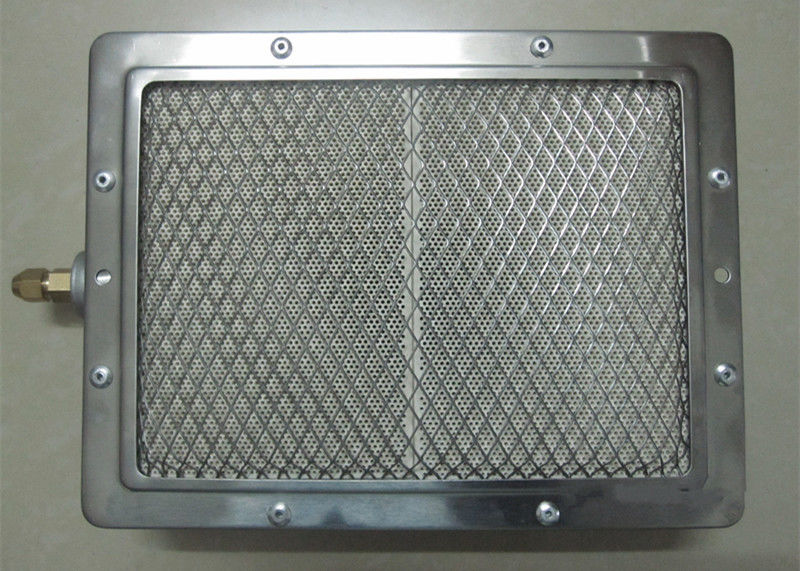

220*167mm Aluminized Steel Sheet Ceramics Infrared Gas Burner For Shawarma Machine
Advantages:
1. Save above 40% energy than that of electric kebab grill
2. Eco-friendly: CO<80ppm;NOx<10ppm;CHx<50ppm,very low harmful gas release
3. Easy use with gas LPG/NG nozzles preinstalled
4. fast baking by far gas infrared radiation
Application:

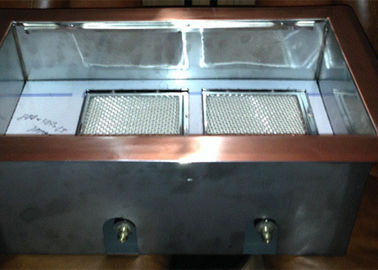

all kinds of shawarma machine, doner kebab machine, gyros machine, grill oven, bbq oven, chicken/lamb roasting, etc.
Feature:

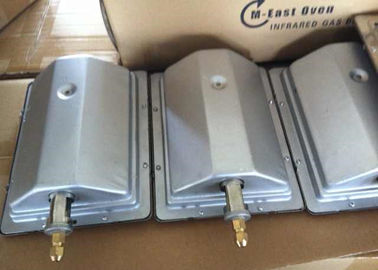

Every burners has a brass nozzles with naturally sealed ring. Size is for 6mm copper pipe.
Material:
1. Shell: Aluminized Steel sheet and stainless steel top plate
2. Radiant part: cordierite ceramics honeycomb plates
3. Nozzle: brass orifices
4. Up cover: stamped stainless steel
Specifications:
| Burning Area | 180x130mm | Net Weight | 0.80kg |
| Dimension (excluding pipe) | 220*167mm | Gas Type | LPG / NG |
| Consumption | LGP=0.16kg/h NG=0.22m3 | LPG pressure | 2.8-3kpa |
| Heat Output | 8000BTU | NG pressure | 2-2.2kpa |
| with nozzle | yes | nozzle thread | 6mm copper tube |
| with protect net | yes | net material | stainless steel |
| application | shawarma kebab machine | ||
