Product Details:
Payment & Shipping Terms:
|
| Burner Box: | Aluminized | Top Side Plate: | 304 Stainless Steel |
|---|---|---|---|
| Burning Area: | 180*130mm | Total Dimension: | 257*143*105mm |
| Consumption LPG (Kg/hr): | 0.18kg/hr | Heat Output: | 9700BTU |
| Net Weight: | 1.03kg | Convertion Rate: | >90% |
| High Light: | infrared catalytic gas burner,gas bbq infrared burner |
||

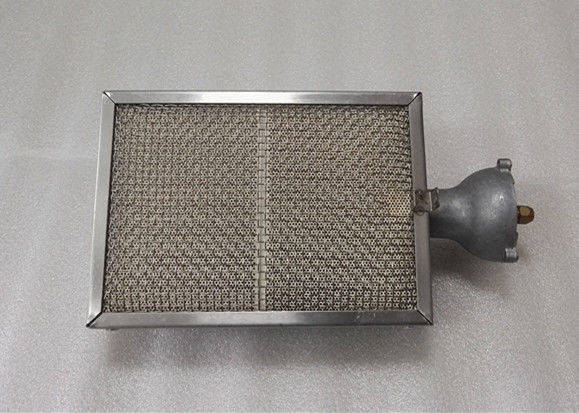

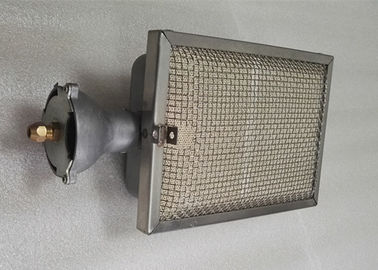

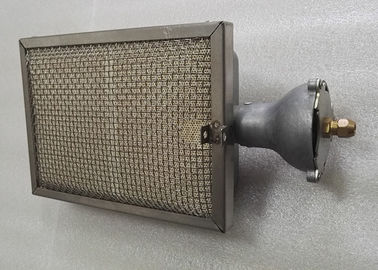

Aluminized And Stainless Steel Infrared Ceramics Gas Burner With Nozzle For Kebab Machine
Advantages:
1. Save above 40% energy than that of electric kebab grill
2. Eco-friendly: CO<80ppm;NOx<10ppm;CHx<50ppm,very low harmful gas release
3. Easy use with gas LPG/NG nozzles preinstalled
4. fast baking by far gas infrared radiation
5. originally customized by customer sample.
Application:
can fit many kinds of shawarma machine, doner kebab machine, gyros machine, grill oven, bbq oven, chicken/lamb roasting, etc.
Feature:
Every burners has a brass orifice with 6mm copper size.
Material:
1. Shell: Aluminized Steel sheet and stainless steel top plate
2. Radiant part: cordierite ceramics honeycomb plates
3. Nozzle: brass connects to 6mm copper pipe
4. Up cover: stamped stainless steel
Specifications:
| Burning Area | 180x130mm | Net Weight | 1.03kg |
| Total Dimension | 257*143*105mm | Gas Type | LPG / NG |
| Consumption | 0.18kg/hr | LPG pressure | 2.8-3kpa |
| Heat Output | 9700BTU | NG pressure | 2-2.2kpa |
| with nozzle | yes | nozzle thread | 6mm copper tube |
| with protect net | yes | net material | 304 stainless steel |
| application | shawarma kebab machine | ||
Burner used on kebab machine
