Product Details:
Payment & Shipping Terms:
|
| Material: | Alumina Cordierite Ceramics | Size: | 154*64mm |
|---|---|---|---|
| Hole Size: | 1-1.2mm | Color: | White |
| Application: | Gas Burner, Gas Heater | Advantage: | Catalytic Ceramics |
| Surface Burning Temperature: | 1000-1200°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,porous ceramic plate |
||

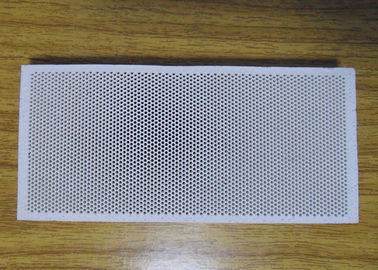

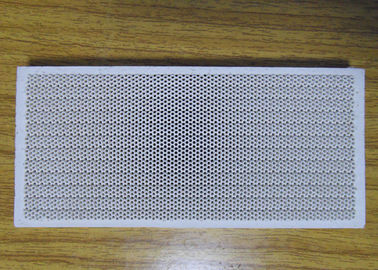

154*64mm Alumina Honeycomb Porous Infrared Cordierite Ceramics Plate For Gas Heater
Applications:
Barbecues,Gyro Cookers,Broilers,Pizza Ovens,Convection Ovens,Pressure Fryers,Deep Fat Fryers,food Process,Evaporators,gas Ranges,Gas Ovens Rotisserie Ovens Griddles Space Heaters Greenhouse Sear Cookers,etc.and various burners, heaters and barbecue set which burn gas.
Introduction:
Infrared ceramic is made of high purity cordierite material and widely used in gas radiant heaters that saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission.the special designed infrared ceramic plate provides a superb surface area and working burning surface due to its interlaced corrugated surface of the ceramic plate combined with honeycomb basis. We have been innovatively
Specification:
| Material | Alumina cordierite Ceramic |
| size | 154*64mm |
| thickness | 14mm |
| gas hole size | 1-1.2mm |
| color | white |
| Shape | rectangle |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 20~50% energy saved |
| Surface burning temperature | 1000-1200°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Application | |
| Barbecues | gas burner |
| cast iron burner | industrial oven |
| heat exchange | surface treatment |
