Product Details:
Payment & Shipping Terms:
|
| Material: | Alumina Cordierite Ceramics | Size: | 147*73mm |
|---|---|---|---|
| Hole Size: | 1-1.2mm | Color: | White |
| Application: | Gas Infrared Heater, Gas Infrared Burner | Advantage: | Catalytic Ceramic |
| Surface Burning Temperature: | 1000-1200°C | Highest Working Temperature: | >1375°C |
| High Light: | gas heater ceramic plates,porous ceramic plate |
||

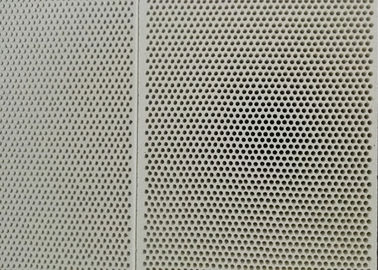

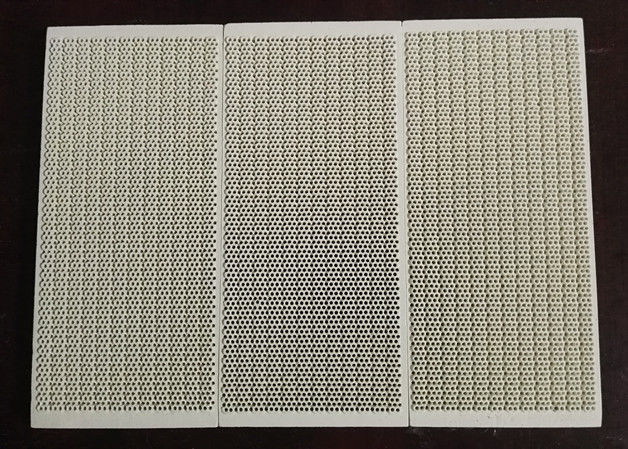

147*73mm Flameless Alumina Cordierite Infrared Honeycomb Ceramic Plates For Gas Heater
Introduction:
Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove
where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission. This product has good thermal shock resistance (no
cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength
is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high erosion resistance.
Benefits:
Outstanding Strength
Uniform and evenly radiant heating
Excellent thermal shock resistance
Save up to 30~60% energy cost
flameless burning, high efficiency, low noise
Reduce the harmful gas such as CO, NOx, etc more than 90%
Specification:
| Material | cordierite Ceramic |
| size | 147*73mm |
| thickness | 14mm |
| gas hole size | 1-1.2mm |
| color | white |
| Shape | rectangle |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 20~50% energy saved |
| Surface burning temperature | 1000-1200°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Application | |
| Barbecues | gas burner |
| cast iron burner | gas heater |
