Product Details:
Payment & Shipping Terms:
|
| Material: | Alumina Cordierite Ceramics | Size: | 155*95mm |
|---|---|---|---|
| Hole Size: | 1-1.2mm | Color: | White |
| Application: | Infrared Burner, Infrared Heater | Advantage: | Catalytic Ceramic |
| Surface Burning Temperature: | 1000-1200°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,gas heater ceramic plates |
||

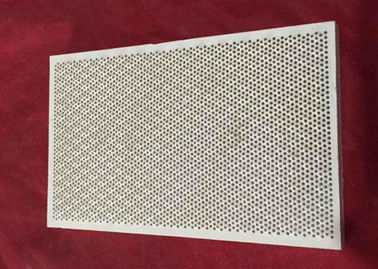

155*95mm Flameless Porous Cordierite Infrared Honeycomb Ceramics Plates For Infrared Burner
Infrared honeycomb ceramic plate used in combustion oven by using modern advanced technology and selecting high-purity and high-quality cordierite. it has the advantages of high heat efficiency and low energy consuming, low pollution, very economic, easy installing, high ventilative rate and strong heat radiation, Compared with the electrical heating and common gas-fired combustion equipment.
Benefits:
Outstanding Strength
Uniform and evenly radiant heating
Excellent thermal shock resistance
Save up to 30~60% energy cost
flameless burning, high efficiency, low noise
Reduce the harmful gas such as CO, NOx, etc more than 90%
Specification:
| Material | cordierite |
| size | 155*95mm |
| thickness | 14mm |
| gas hole size | 1-1.2mm |
| color | white |
| Shape | rectangle |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 20~50% energy saved |
| Surface burning temperature | 1000-1200°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Application | |
| Barbecues | gas burner |
| cast iron burner | gas heater |
