| Material: | Alumina Cordierite | Diameter: | 100-200mm |
|---|---|---|---|
| Gas Hole Size: | 1-1.2mm | Color: | White / Black |
| Application: | Burner / Grill / Heater / Cooktop / Stove / Etc | Feature: | Catalytic Ceramics |
| Surface Burning Temperature: | 1000-1200°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,gas heater ceramic plates |
||

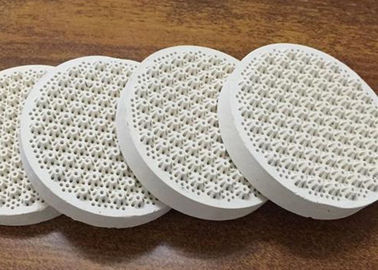

Round Shape Porous Honeycomb Cordierite Gas Infrared Ceramic Plate For Cooking Equipment

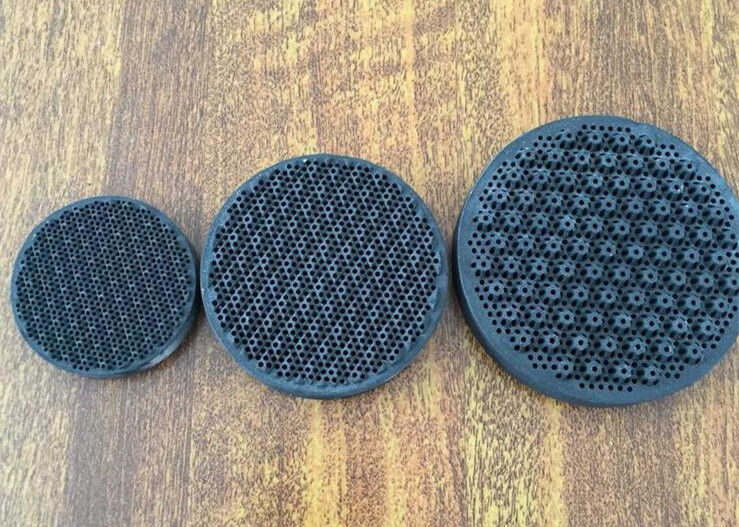

If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style and this combustion style has more
outstanding advantages comparing to the normal gas-fired stove combustion as below:
1. 30%-60% energy saving
2. Mixes oxygen completely with the gas, burning efficiently with no flame and little noise.
3. Operating safety without being influenced by wind when operating outdoor.
4. Decreasing the CO and NOx poisonous gas disposal and remove harmful.
Specification:
| Material | cordierite |
| Diameter | 100-200mm |
| thickness | 14mm |
| gas hole size | 1-1.2mm |
| color | white / black |
| Shape | Round |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 30~50% energy saved |
| Surface burning temperature | 1000-1200°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Application | |
| gas burner | cooking burner |
| industrial curing burner | food oven |
