| Material: | Alumina Cordierite Ceramics | Size: | Customized |
|---|---|---|---|
| Thickness`: | 13-14mm | Color: | Black, Green, Etc. |
| Application: | Bbq Burner, Heater, Oven Burner | Advantage: | Catalytic Energy Saving |
| Surface Burning Temperature: | 1000-1200°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,gas heater ceramic plates |
||

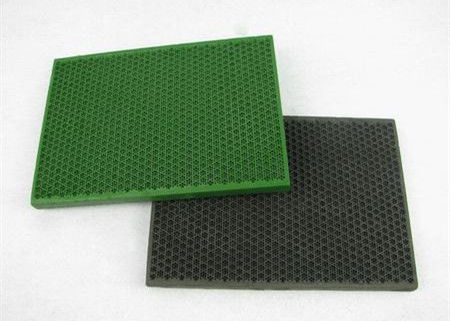

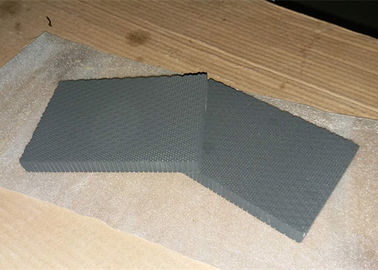

Catalytic Porous Honeycomb Gas Infrared Cordierite Ceramic Plate For Gas Oven Burner
If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style and this combustion style has more outstanding advantages comparing to the normal gas-fired stove combustion as below:
1. 30%-60% energy saving
2. Mixes oxygen completely with the gas, burning efficiently with no flame and little noise.
3. Operating safety without being influenced by wind when operating outdoor.
4. Decreasing the CO and NOx poisonous gas disposal and remove harmful.
Our company infrared combustion ceramic plate honeycomb ceramic can be applied to different gas. When customer place the order, customer should provide the parameters such as the product size, CPSI, cell shape, the gas style, the pattern on the surface. If the you like the one with coated catalyst, you should provide the catalyst color.
Advantages:
1. Save 30-60% energy consumption.
2. Burn without flame, low noise.
3. Reduce the formulation of such harmful gas as CO, NOx, etc by a large margin (more than 70%)
Specification:
| Material | cordierite |
| dimension | custom made as per request |
| thickness | 13-14mm |
| gas hole size | 1-1.2mm |
| color | black, green, etc. |
| Shape | rectangle |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 30~50% energy saved |
| Surface burning temperature | 1000-1200°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Feature | catalytic energy saving |
| Application | |
| grill burner | oven burner |
| industrial coating burner | heater |
