Product Details:
Payment & Shipping Terms:
|
| Material: | Cordierite | Diameter: | 114mm,126mm,143mm |
|---|---|---|---|
| Equivalent Burner Size: | 125mm,135mm,150mm | Color: | Blue With White |
| Application: | Cooker, Cooktop, Cooking Stove | Feature: | Catalytic Ceramics |
| Surface Burning Temperature: | 1100°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,gas heater ceramic plates |
||
Round Flameless Catalytic Cordierite Infrared Honeycomb Ceramics Plate For Cooktop
Infrared honeycomb ceramic plate used in combustion oven by using modern advanced technology and selecting high-purity and high-quality cordierite. it has the advantages of high heat efficiency and low energy consuming, low pollution, very economic, easy installing, high ventilative rate and strong heat radiation, Compared with the electrical heating and common gas-fired combustion equipment.
Introduction:
Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission. This product has good thermal shock resistance (no cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high erosion resistance.
Specification:
| Material | cordierite |

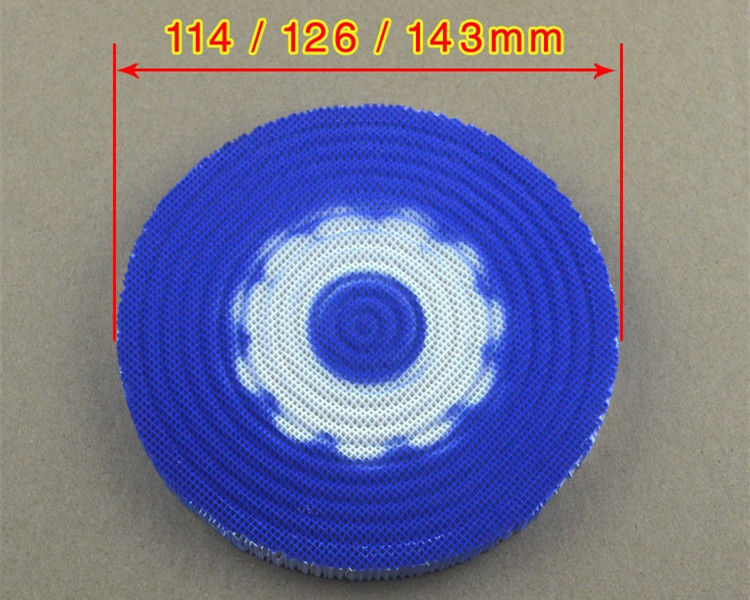

| Diameter | 114mm,126mm,143mm |

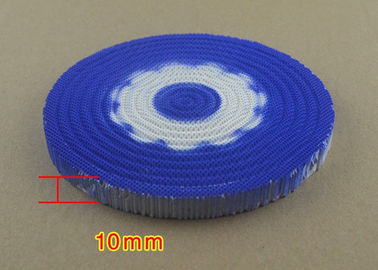

| thickness | 10mm |
| equivalent burner size | 125mm,135mm,150mm |
| color | blue with white |
| Shape | round |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 30~60% energy saved |
| Surface burning temperature | 1100°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Feature | catalytic energy saving |
| Application | |
| cooker | cooktop |
| round burner | cooking stove |
