Product Details:
Payment & Shipping Terms:
|
| Material: | Cordierite | Diameter: | 150mm,160mm |
|---|---|---|---|
| Equivalent Burner Size: | 155mm,165mm | Color: | Catalytic Black |
| Application: | Cooker, Cooktop, Cooking Stove | Feature: | Arched Surface |
| Surface Burning Temperature: | 1100°C | Highest Working Temperature: | >1375°C |
| High Light: | ceramic burner plate,gas heater ceramic plates |
||

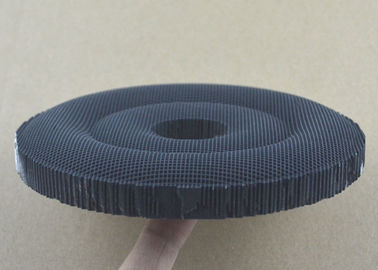

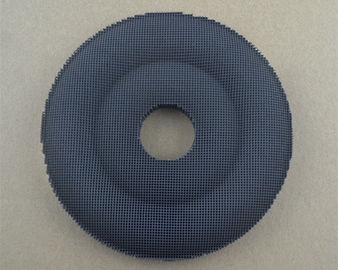

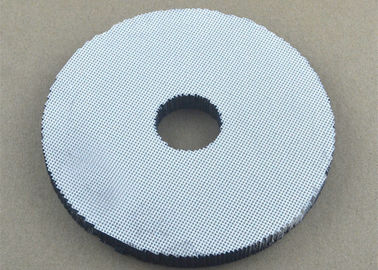

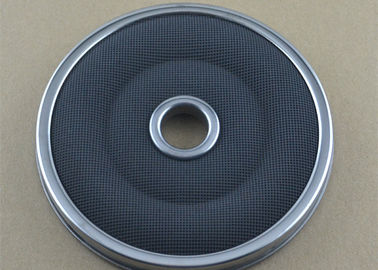

Flameless Arched Round Catalytic Infrared Honeycomb Ceramics Plates With Inside Hole For Cooking
If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style and this combustion style has more
outstanding advantages comparing to the normal gas-fired stove combustion as below:
1. 30%-60% energy saving
2. Mixes oxygen completely with the gas, burning efficiently with no flame and little noise.
3. Operating safety without being influenced by wind when operating outdoor.
4. Decreasing the CO and NOx poisonous gas disposal and remove harmful.
Specification:
| Material | catalytic cordierite |
| Diameter | 150mm,160mm |
| equivalent burner size | 155mm,165mm |
| color | black |
| Shape | round with arched surface |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 30~60% energy saved |
| Surface burning temperature | 1100°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Feature | catalytic more energy saving |
| Application | |
| cooker | cooktop |
| round burner | cooking stove |
