Product Details:
Payment & Shipping Terms:
|
| Burner Box: | Cast Iron | Heat Output: | 50000BTU |
|---|---|---|---|
| Dimensions: | 990*132*215 | Consumption: | 0.72LPG (Kg/hr) |
| Gas Inlet: | Venturi Tube | Gas Use: | LPG / NG / RG |
| Nozzle Size: | 1.45mm | Weight: | 12.5kgs |
| High Light: | industrial gas burner,ceramic infrared burner bbq |
||

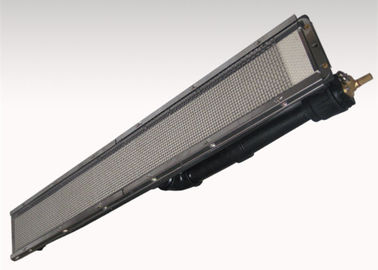

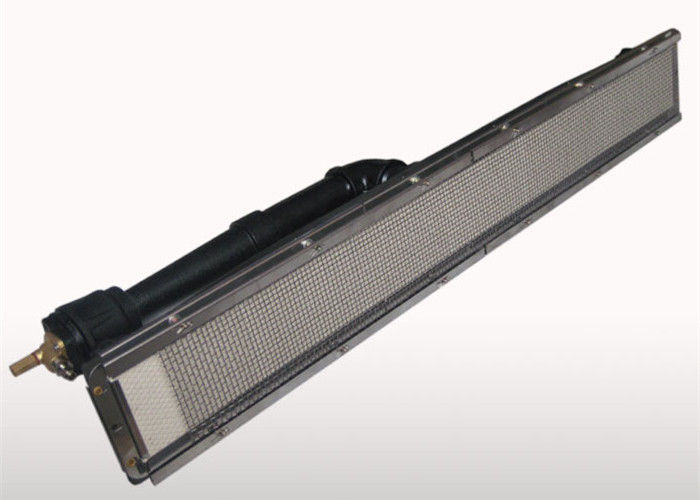

990*132mm Industrial Longest Catalytic Ceramics Infrared Gas Burner With Bottom Venturi Inlet
Function:
Infrared Burner takes honeycomb ceramic plates as burner, the gas can premix with air when burning and ensure burning completely. Thatcan greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in many fields, such as BBQ grill, bbq oven, gas infrared oven.
Industrial use:
1. Continuous forging, heat treatment, degree of heat treatment 300_800;
2. Metal surface treatment, moisture drying, baking and all kinds of production equipment for direct heating of 30--300degrees
3. Carpet latex, PVS gloves, ceramic baking mold, GREEN 30--300 degree hezt of dry glazing
Specifications:
| burning area | 890*100mm | with protection net | yes |
| Dimension | 990*132*215 | Net Weight | 12.5kgs |
| gas entry way | venturi tube | Gas Type | LPG / NG / RG |
| Consumption | 0.72LPG (Kg/hr) | LPG pressure | 2.8-3kpa |
| Heat Output | 50000BTU | NG pressure | 2-2.2kpa |
| Nozze hole | 1.45mm | nozzle thread | 6mm copper tube |
| protect net | stainless steel woven net | burner box | cast iron |
| application | cooking, powder coating oven, food process, bbq grill, heat treatment, etc. | ||
